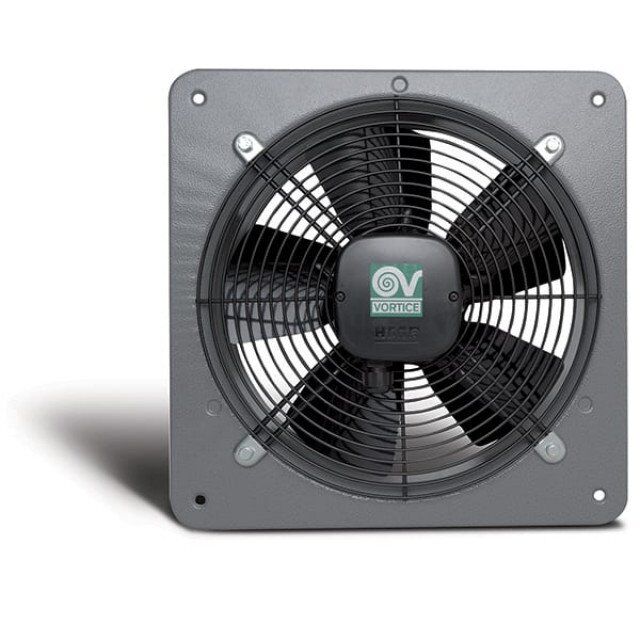

Allvent A-E Range Square Plate Axial Fan

  • For Wall or Panel Mounting
  • Compact, Plate-mounted, Axial-flow fans.
  • Low noise levels
  • Panels made of Vortice pressed steel,
    • phosphate and epoxy powder coated with a hammered effect finish,
    • painted in polyester black paint,
    • 5 pressed steel blades, electrolytically galvanised and polyester powder-coated, colour black,
    • guarantee long-term resistance to atmospheric agents.
  • Ventilation port made:
    • in one piece with the panel gauged to optimise airflow.
    • aerodynamically contoured and elongated to optimise performance
    • easy connection to the relative duct.
  • Vortice Protective grille
    • in accordance with UNI ISO 13857 standard)
    • acts as anti-bird guard,
    • made of electrically welded steel
    • epoxy paint finish, colour black.
    • easy removal simplifies maintenance and cleaning of the fan.
  • Vortice 1 speed single-phase AC motor
    • External rotor type designed to minimise axial dimensions,
    • haft turning in ball bearings,
    • insulation class F, thermal overload protection.
  • Maximum air flow 1365 m3/h
  • Dynamically balanced impeller (UNI ISO 1940, Point 1 – Class 6.3)

Click here for Data Sheet

SKU A-E_M
Brand Allvent
