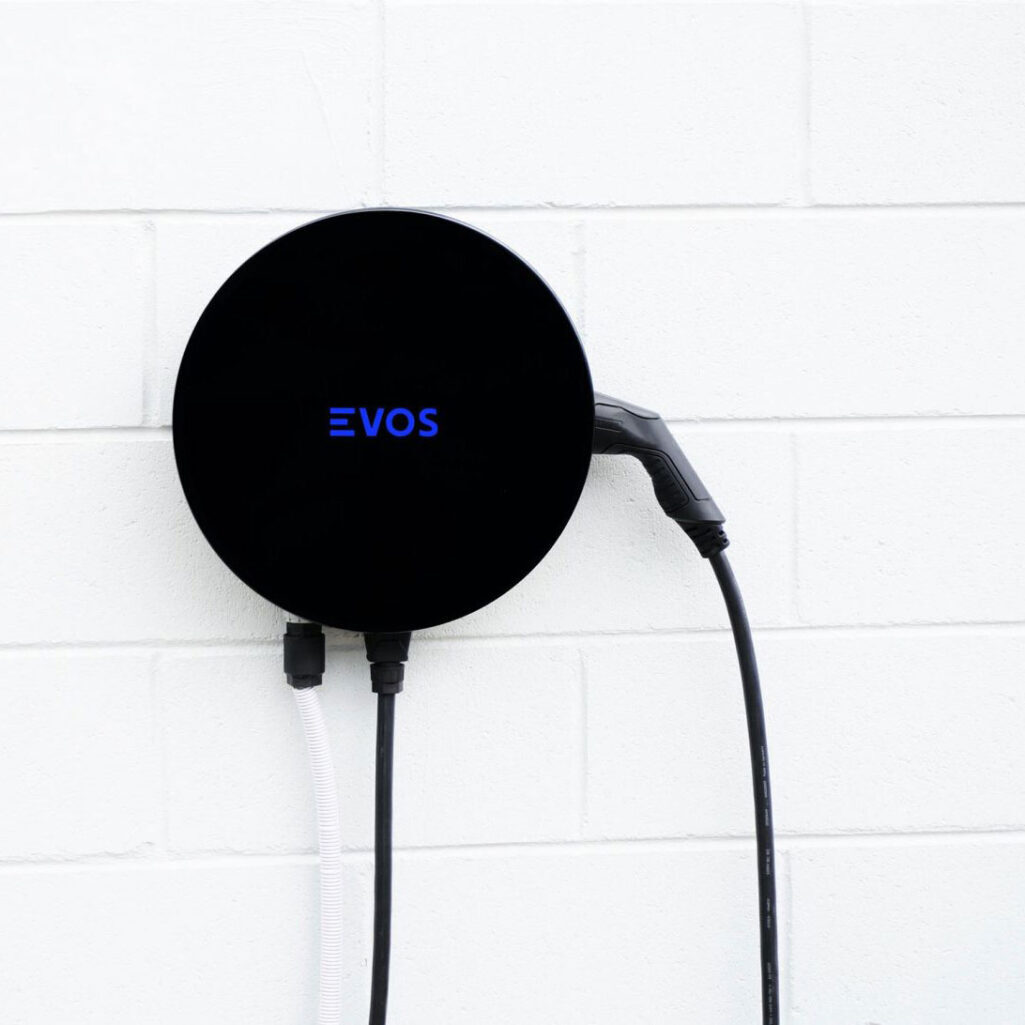

CBI EVOS SB7 Home EV Charger

The smartest, easiest way to charge your electric vehicle (EV)! The EVOS SB7 streamlines your EV charging experience at the home, saving you time and effort while giving you control over power consumption. EVOS designs and manufactures its EV charging products in Australia to deliver quality, performance and innovation.

  • The SB7 AC Charger is designed to be universally compatible with all Type 2 EVs.
  • When paired with the MyEVOS web app and an EVOS current meter, our app intelligently adjusts your charging rate to seamlessly match your solar energy production. This ensures efficient and eco-friendly charging, perfectly aligned with your renewable energy output.
  • Indoor or outdoor installation. The UV stabilised ABS plastic protects the electronic components in an IP65 rated enclosure, designed to withstand the harsh Australian sun and weather.
  • The MyEVOS web app empowers you to manage your charging sessions directly from your smartphone.
  • Welding detection capability: the device detects a permanently engaged switching contact. It notifies the cloud platform of the safety issue, and disconnects itself from the grid until rectified.
  • Charging power: 7.2kW (1P)
  • Connector type: Type 2 or 1
  • Maximum Input Current: 32 amps
  • Nominal AC Frequency: 50 Hz / 60 Hz
  • Input voltage: 110 / 230 V AC ± 10% (1P)
  • Operating temperature: From -30°ºC to 50°ºC
  • Ingress Protection: IP65
  • Built-in 6mA DC RCD. Only type A RCD + MCB required
  • Standards: IEC 61851-1, IEC 61851-21-2, EU RoHS Directive Compliant

Click here for Data Sheet

SKU SB-07
Brand CBI
