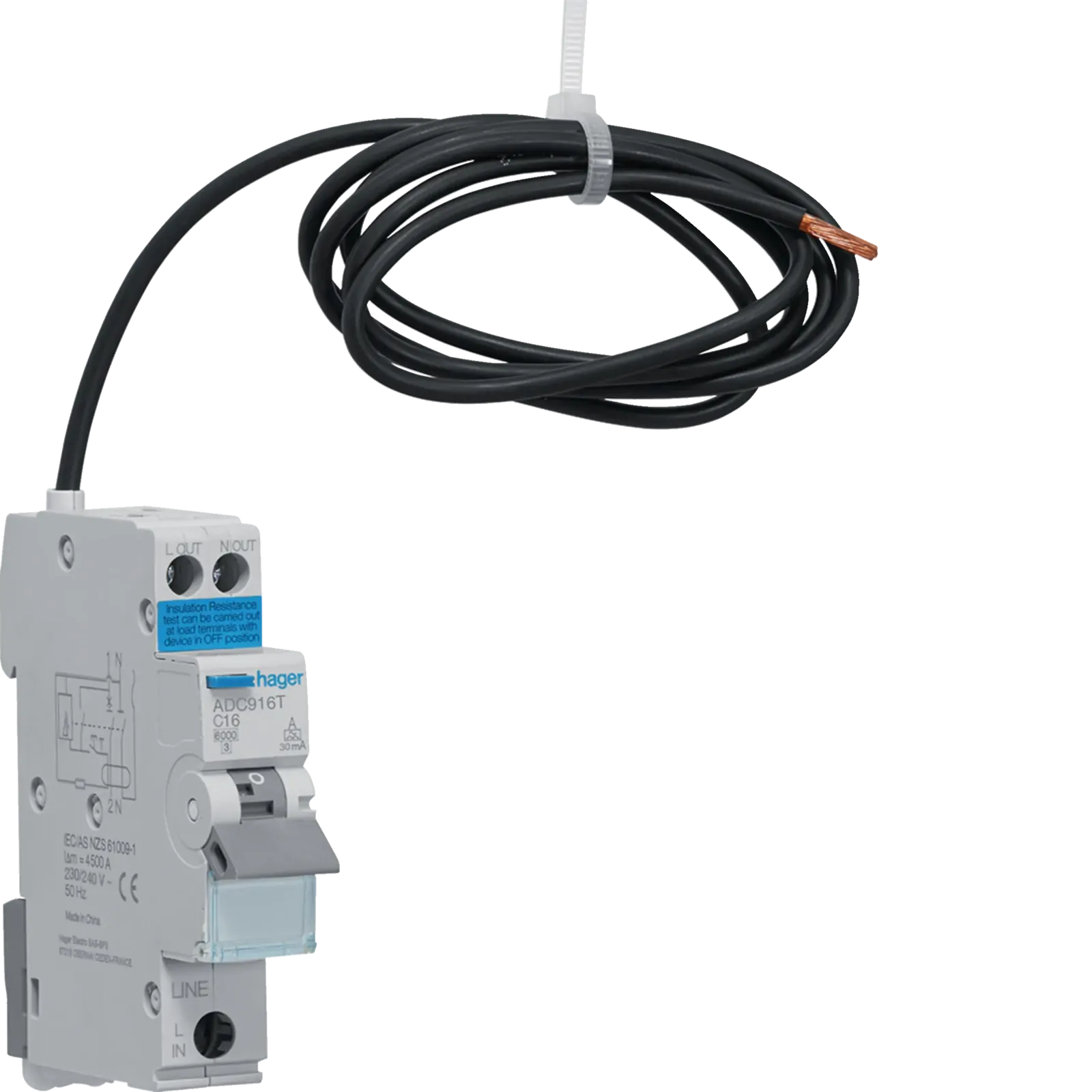

Hager RCBO 1M 1P+N 6kA C-16A 30mA

Safety

• Residual current type A

• Ingress Protec­tion (IP) class IP2X

Main elec­trical attrib­utes

• Rated short-­cir­cuit breaking capa­city Icn AC according to IEC 60898-1 6 kA

Voltage

• Rated insu­la­tion voltage Ui 440 V

• Rated impulse with­stand voltage Uimp 4000 V

• Max. oper­ating voltage 264 V

• Rated oper­a­tional voltage Ue 230 - 240 V

• Over­voltage category according to IEC 60947-1 3

Power

• Total power loss under IN 8,69 W

Frequency

• Frequency 50 - 50 Hz

Use condi­tions

• Max. Alti­tude 2000 m

• Class of energy limit­a­tion I²t 3

• Oper­ating temper­ature -25 - 70 °C

• Stor­age/trans­port temper­ature -25 - 80 °C

Endur­ance

• Elec­tric endur­ance in number of cycles 10000

• Number of mech­an­ical oper­a­tions 20000

Connec­tion

• Cross-sec­tion of input with screws, for flex­ible conductors 1 - 10 mm²

• Cross-sec­tion of input with screws, for massive conductors 1 - 16 mm²

• Cross-sec­tion of input and output with screws, for flex­ible conductors 1 - 10 mm²

• Cross-sec­tion of input and output with screws, for massive conductors 1 - 16 mm²

Install­a­tion, mounting

• Type of top connec­tion for modular devices Screw terminal

• Type of bottom connec­tion for modular devices bicon­nect

Capa­city

• Number of modules 1

Dimen­sions

• Height 85 mm

• Width 17,70 mm

• Depth 70 mm

Compat­ib­ility

• Suit­able for DIN Rail Yes
