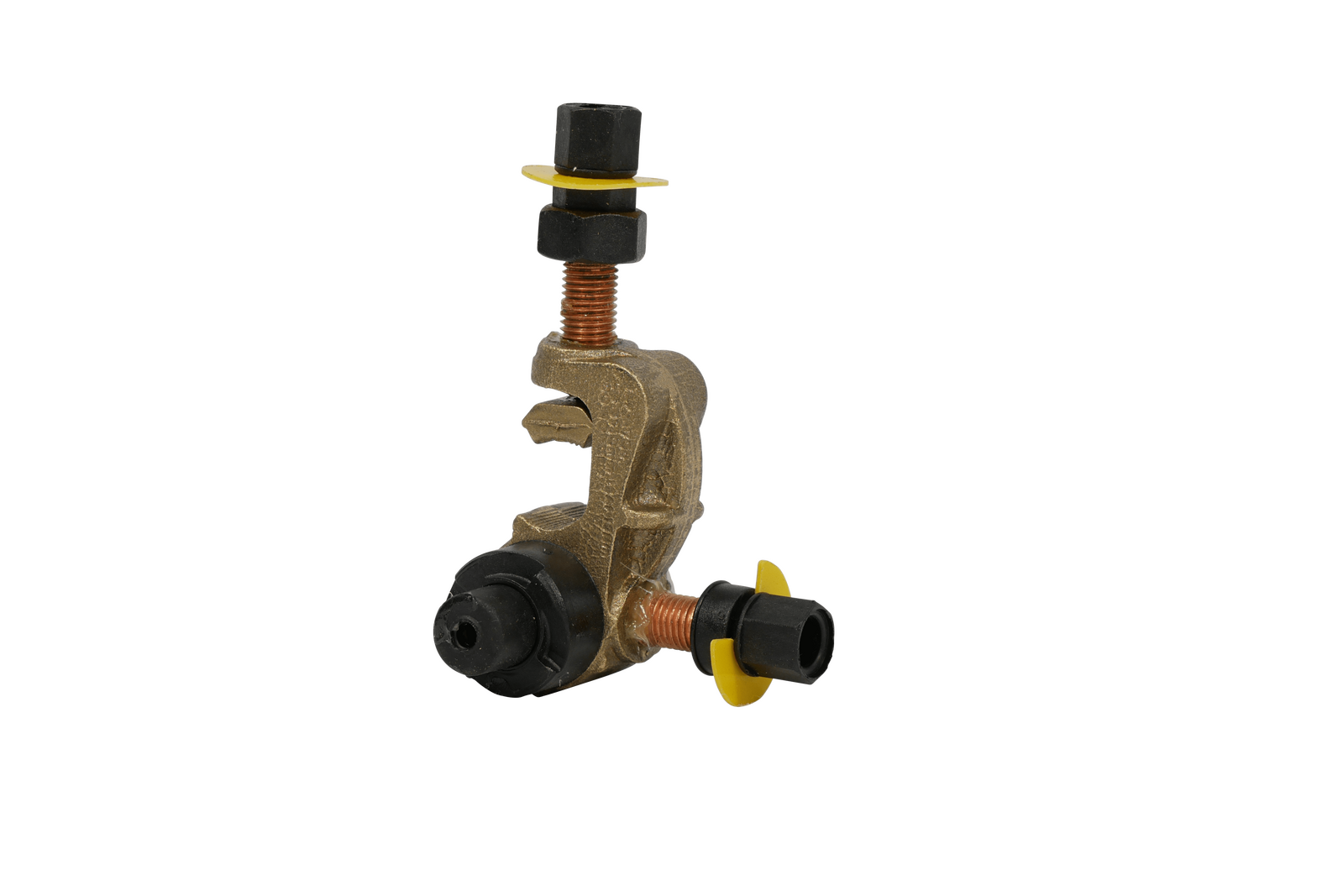

Sicame CCW35 Single Bolt Copper Tap Off Connector

Single Bolt
The CCW series of connectors have been specially designed to provide a waterproof connection between insulated overhead services to a variety of bare copper overhead mains. Both single and double tap models are available along with a two bolt mains and service tap for neutral connections.

• Positive clamping of mains with the use of shear-head technology
• Insulated service connection made with the use of insulation piercing technology, no need to strip service conductor insulation
• Easy and simple to use
• Supplied with service conductor viewing window to show fully inserted or can be supplied black with no window
• Can be supplied as single or twin service connection
• Translucent viewing window for visual check to ensure the conductor is fully inserted right up to the window
• Disconnection of service by easy removal of the connector from the mains
• Complies with relevant sections of AS/NZS 4396:1999.

Product Number Mains Cable Range mm² Service Tap Cable Range mm² Number of Service Connections Viewing Window
CCW35 5.5-135 6 – 35 1 Yes
CCW235 5.5-135 6 – 35 2 Yes
CCW35BK 5.5-135 6 – 35 1 No
CCW235BK 5.5-135 6 – 35 2 No
CCW35DB 5.5-135 6 – 35 1 Yes



Click here for Data Sheet

SKU CCW35
Brand Sicame
