Trader Meerkat Cat 6A Data Mech

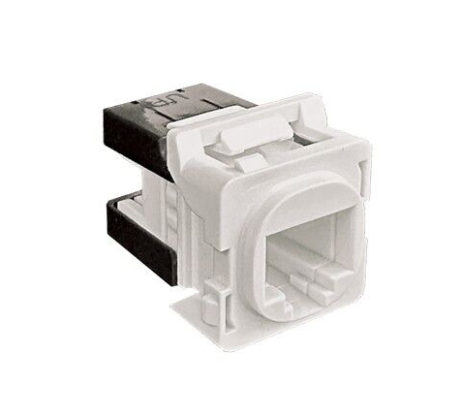

The MERJ6ACM registered jack (RJ-45 style) is perfect for ethernet connecting hardware applications in the office or at home and provides Cat 6A performance, capable of supporting data transfer rates up to 10Gbps at a maximum bandwidth of 500MHz.

  • Tested in accordance and complies with AS/CA S008 2020
  • Complies with IEC60603-7 section 5.7 connecting hardware, including plugs and sockets of all designs.
  • Complies with IEC 60603-7 Clause 6.4.2 for Voltage proof where connecting hardware shall have dielectric withstand capability of 1.5kV for 60 s.
  • Complies with IEC 60512, Test 4a for 1000 VDC or AC peak contact to all contacts.
  • Complies with IEC 60512, Test 4a for 1500 VDC or AC peak all contact to shield.Suitable for termination using a 110 tool or MERJ6ACMTT, quick cable clip termination tool as shown in instructions. (Note: this model does not suite a Krone tool termination)
  • Kit comes with cable clip that is compatible with TRADER wall plate apertures.

Click here for Data Sheet

SKU MERJ6ACM
Brand Trader
